Product Features
- Hybrid design provides AC power even in off-grid environments;
- Parallel capability supports up to 9 units for expansion or phase splitting;
- IP54 protection for outdoor use, effectively resisting rainwater intrusion;
- The HE300-4200-T model does not support battery-less operation; it must be used with a connected battery;
- Configurable charging current via button settings for flexible battery capacity matching;
- Adjustable AC output voltage and frequency to adapt to different grid environments.
Product parameters
| Item | HE300‑7200‑FP‑I5 | |
|---|---|---|
| Inverter Output | ||

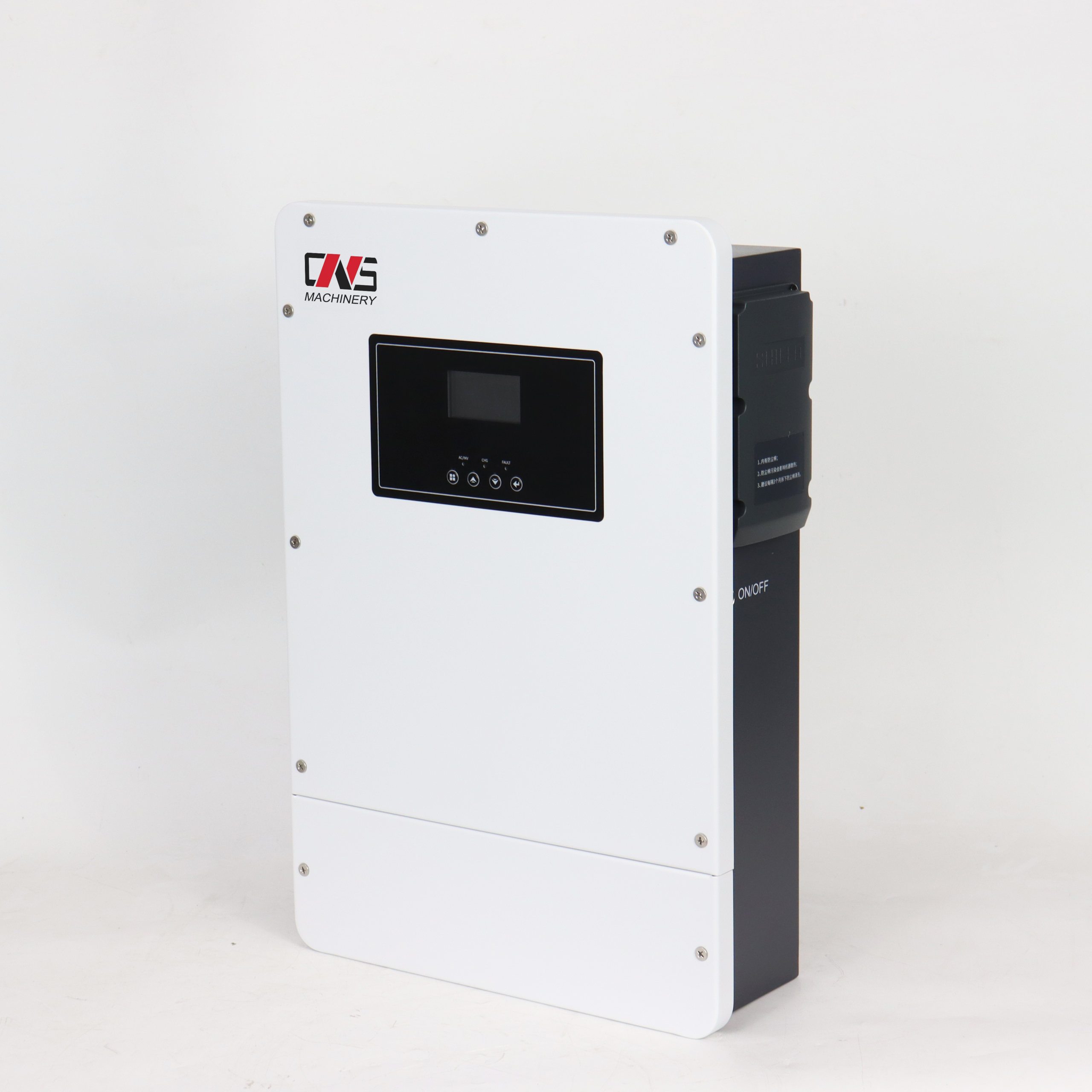

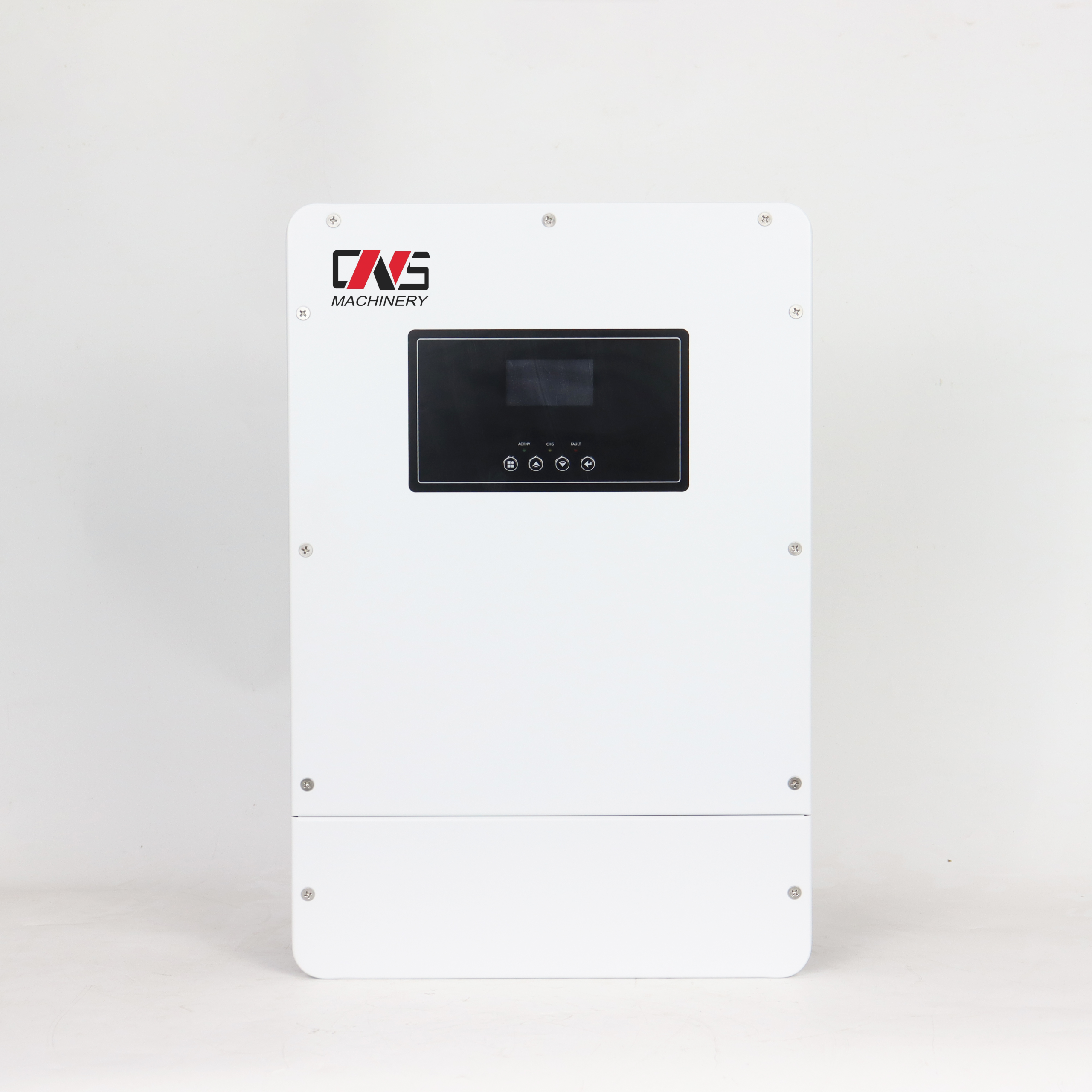

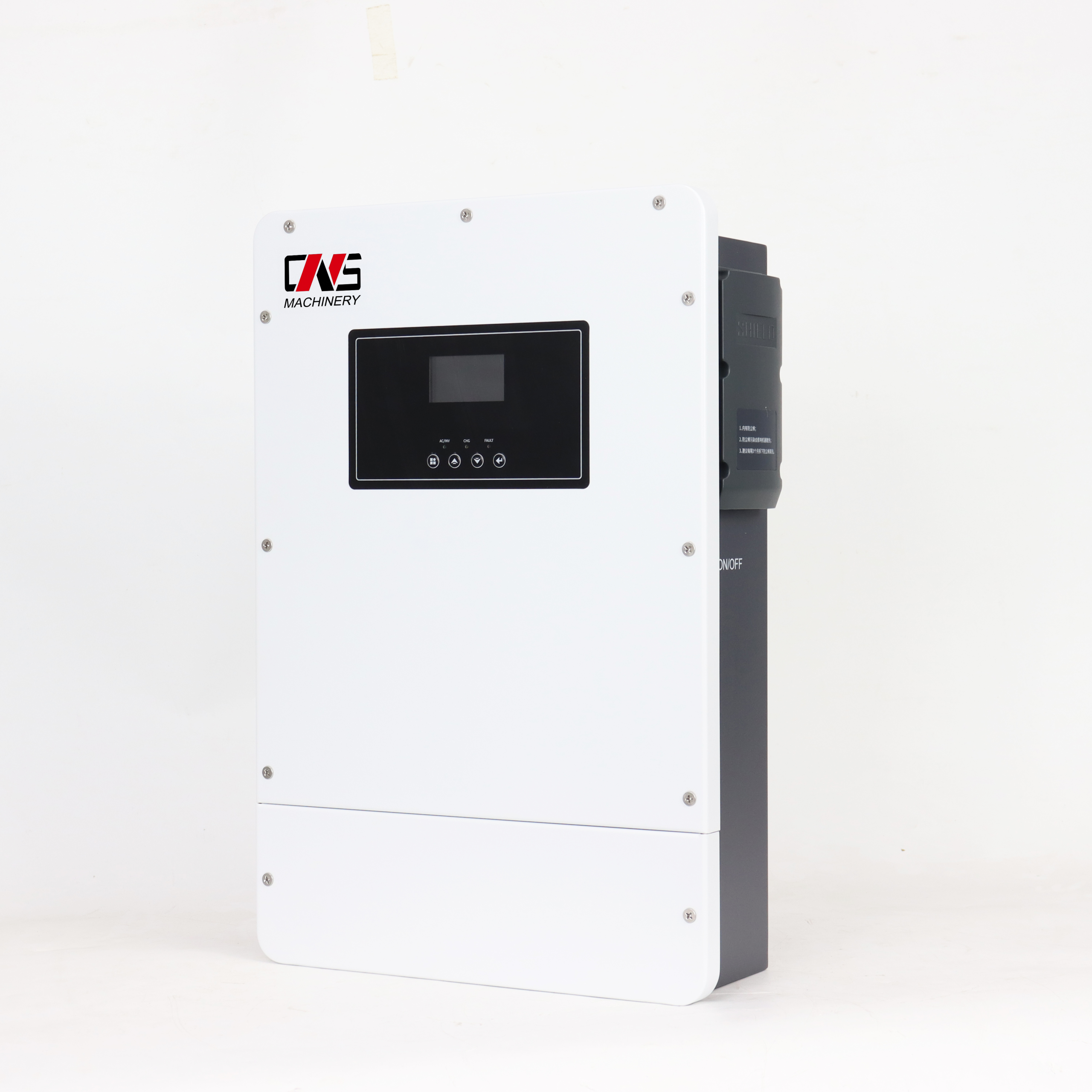

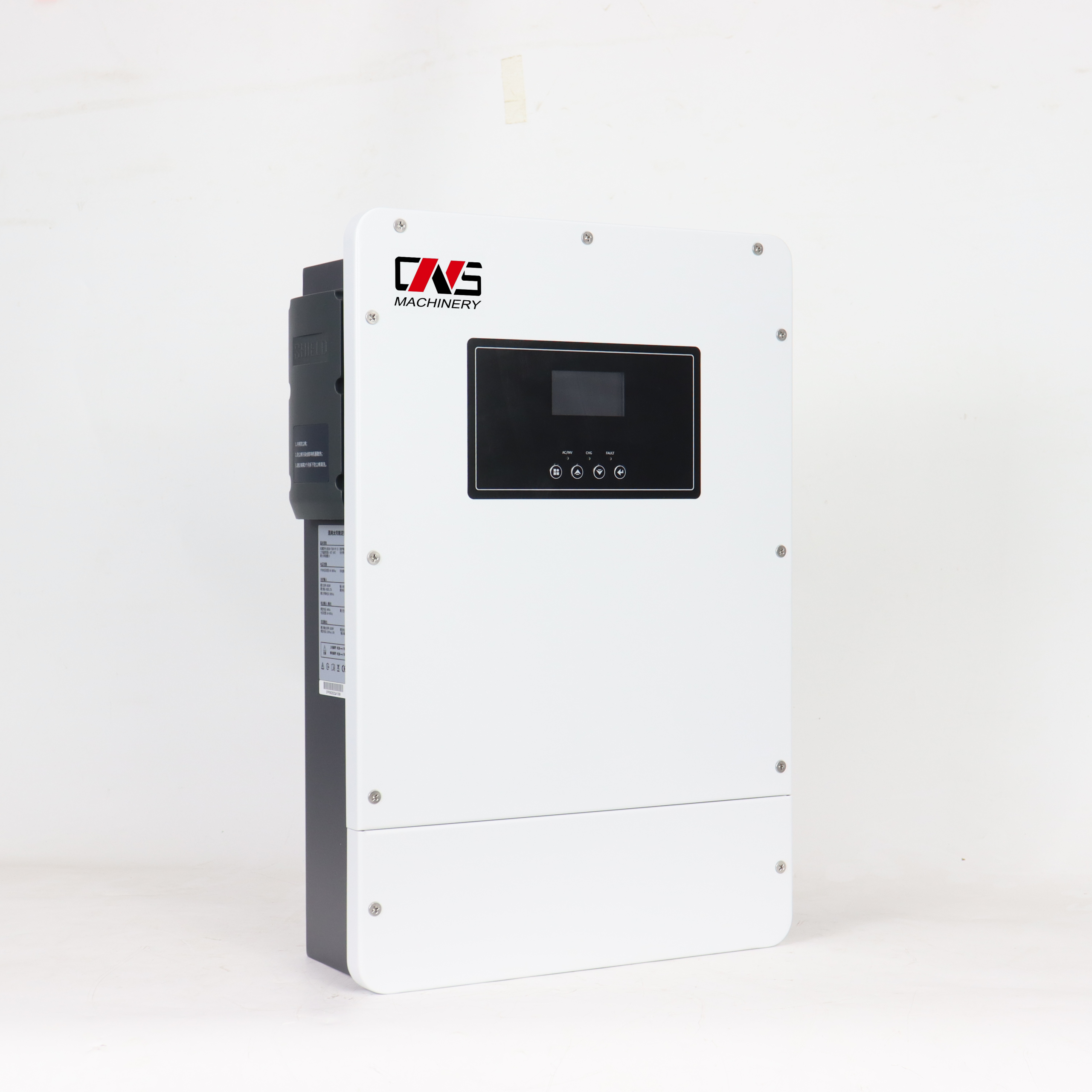

| Image | <div align=”center”>Product Picture</div> | |
| Max. Output Power | 55800W (Expandable by 9‑unit parallel connection) | 55800W (9‑unit parallel for split‑phase) |
| Max. Output Voltage | 240Vac ±5% (Single‑phase) | 415Vac ±5% (Three‑phase) |
| Max. Output Current | 253.6A | 146.8A |
| Max. Output Frequency | 50/60Hz | |
| Output Waveform | Sine Wave | |

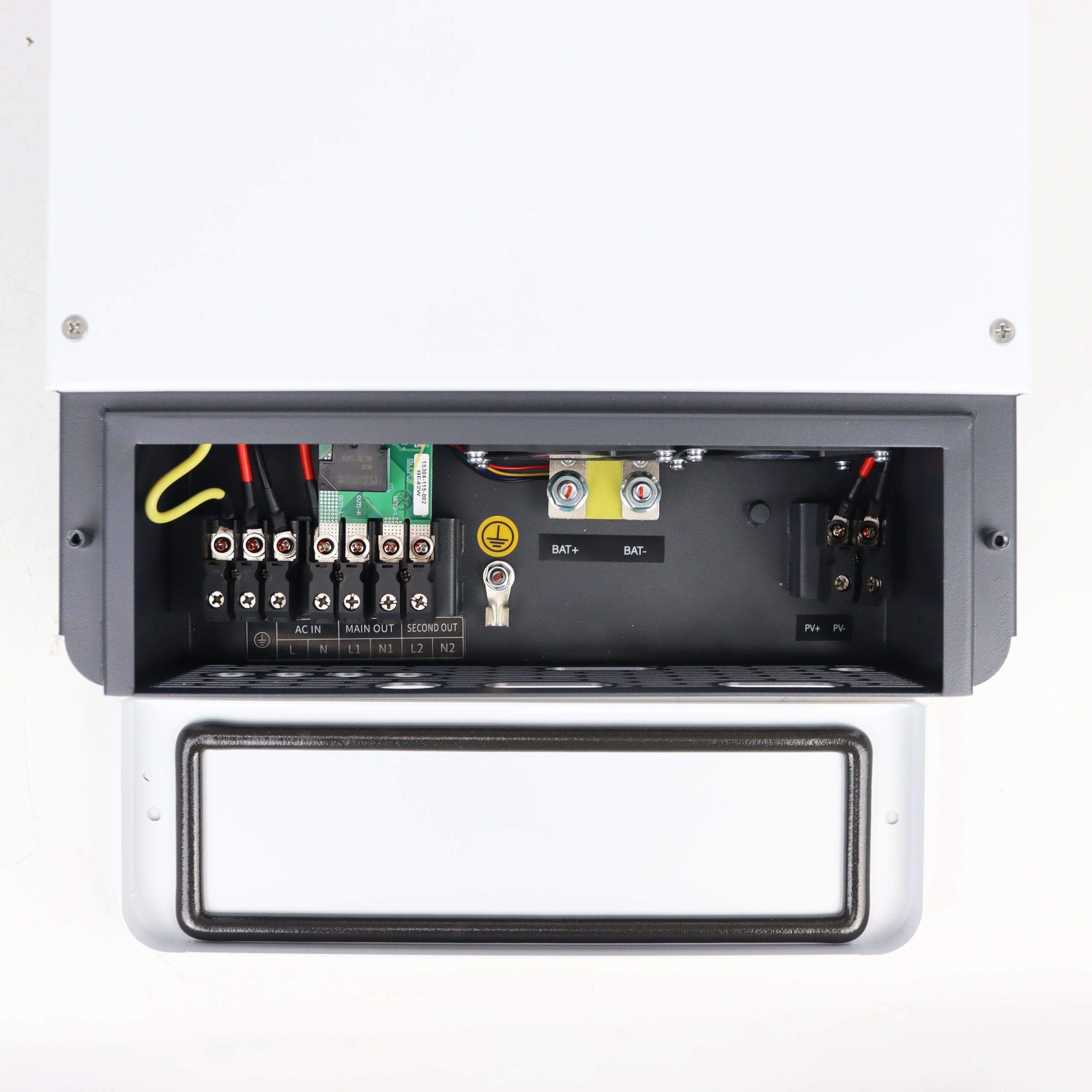

| Output Topology | L1+N1+L2+N2+PE | |
| Battery | ||
| Battery Type | Lead‑acid / Lithium Battery | |
| Rated Battery Voltage | 48Vdc | |
| Max. PV Hybrid Charging Current | 120A | |
| Charging Mode | 2‑circuit / 3‑circuit / Auto setting | |
| PV Input | ||
| Number of MPPT | 1 channel per unit; 9 channels for 9 parallel units | |
| Max. Input Power | 8500W | |
| Max. Open‑circuit Voltage | 500Vdc | |
| Max. Short‑circuit Input Current | 27A | |
| Input Open‑circuit Voltage Range | 60~450Vdc | |
| Max. Conversion Efficiency (DC/AC) | 98% | |
| Utility / Generator Input | ||
| Input Voltage Range | 90‑280VAC ±3V (APL Mode)
170‑280VAC ±3V (UPS Mode) |
|
| Rated Input Voltage | 230Vac | |
| Input Frequency | 50/60Hz | |
| Max. Mains Charging Current | 100A | |
| General Parameters | ||
| Dimension (mm) | 527.5355140mm | |

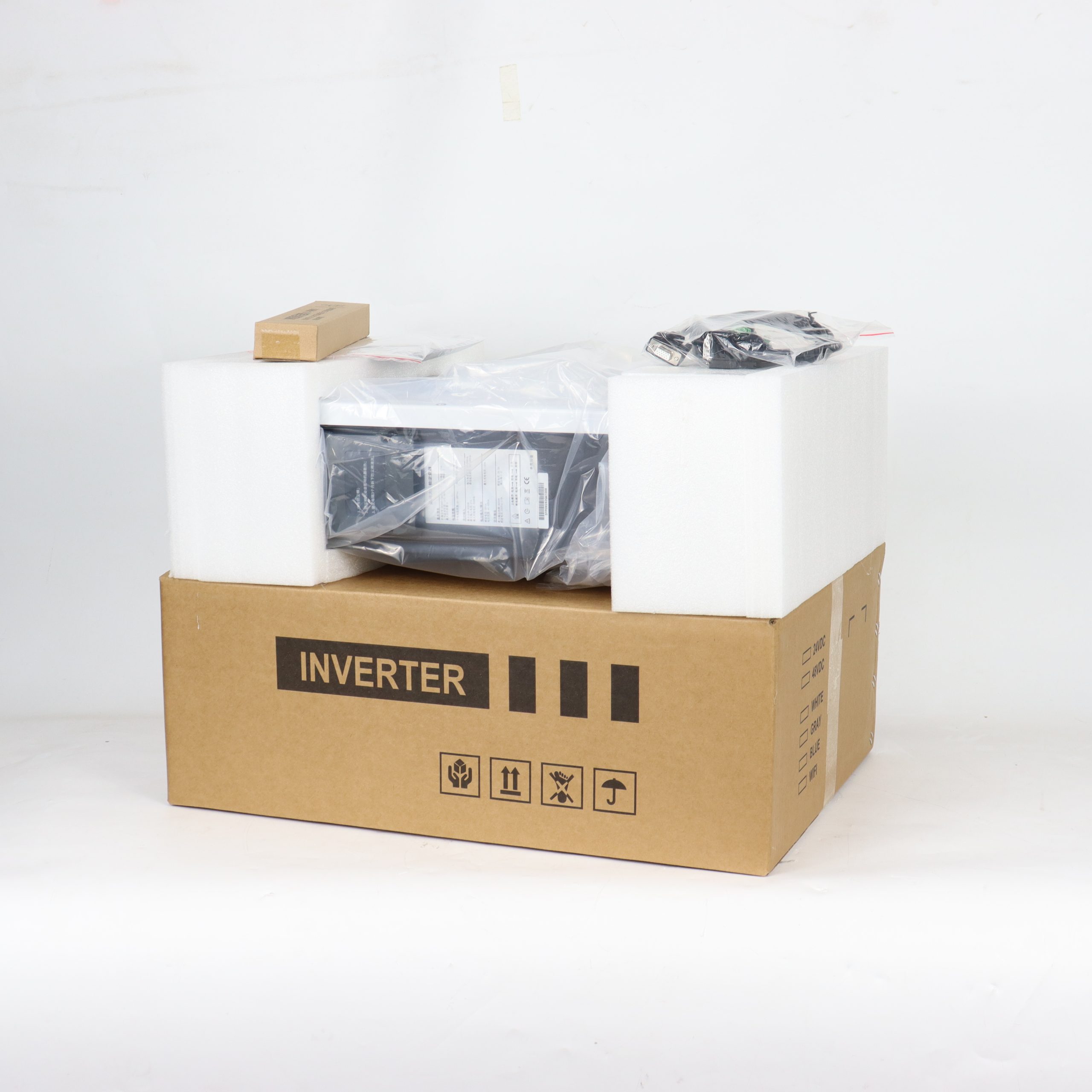

| Package Dimension (mm) | 603.5443226mm | |
| Net Weight | 14.75kg | |
| Gross Weight | 16.85kg | |
| Protection Class | IP54 | |
| Operating Temperature | -10℃~50℃ | |

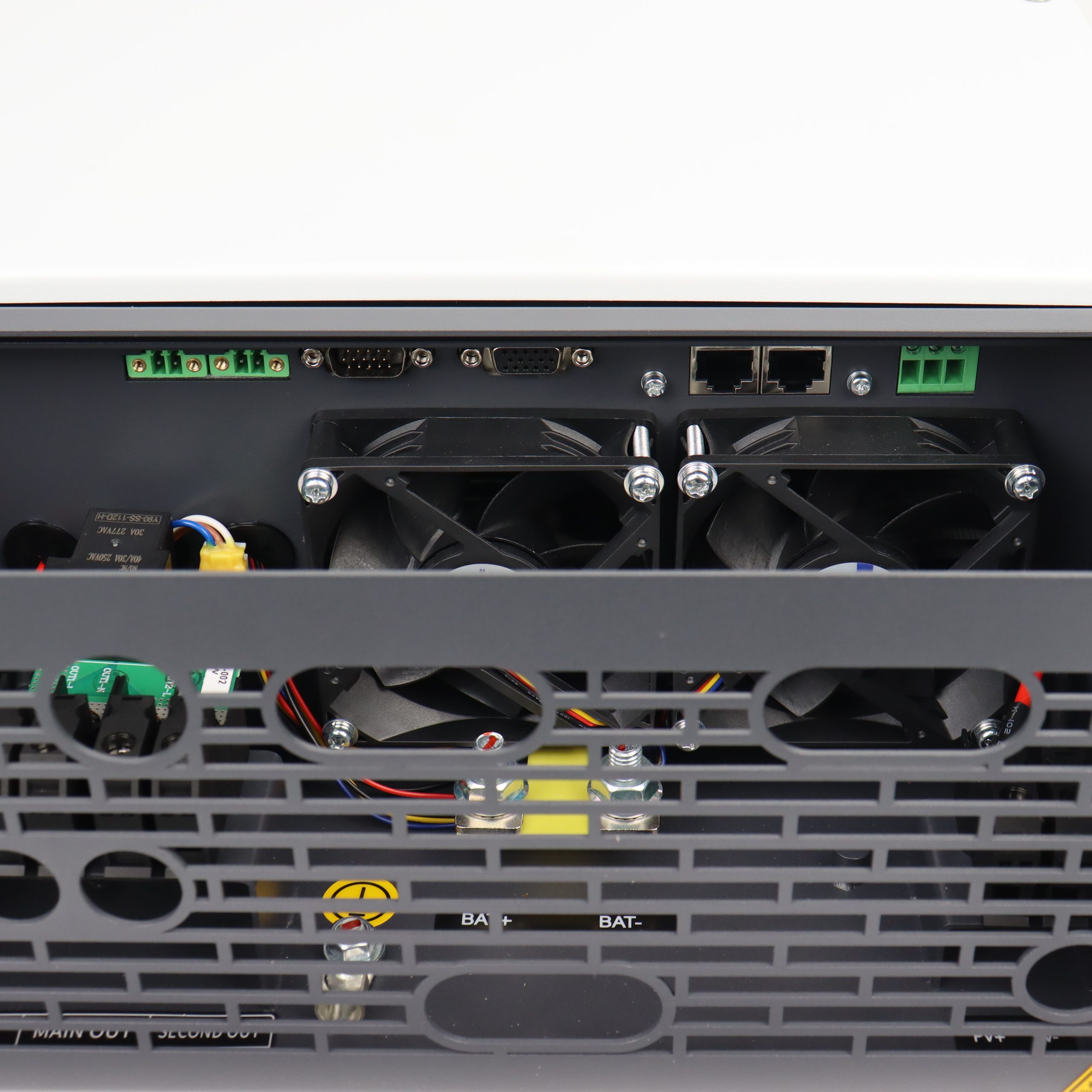

| Cooling Method | Intelligent Air Cooling | |
| Humidity | 20%~95% |
Company Environment
Product application scenarios
Residential Use (I5 Model: Rainproof, Suitable for Outdoor Installation)
Farm Use
Agricultural Greenhouse
Commercial Use (Parallel Machine Model)
Founded in 2006 and headquartered in Suzhou, Anhui, CNS MACHINERY (Suzhou) Co., Ltd. belongs to CNS Group, holding ISO9001 certification. Under our brand ——Voltaster, we specialize in R&D, manufacturing and global sales of solar power systems, portable solar generators and residential battery energy storage systems.Covering 60,000 square meters of production base with over 500 skilled employees, we have accumulated nearly 20 years of manufacturing experience in the energy industry and own more than 20 innovation patents. Our complete CNC production lines implement strict full-process quality control. We continuously invest heavily in R&D and support flexible OEM & ODM services.
Voltaster products have been exported to markets worldwide, providing reliable clean energy solutions for households, commercial projects and industrial power storage scenarios. We keep focusing on stable performance, safety and cost-effectiveness, to deliver trustworthy photovoltaic and energy storage products for global partners.
1. Are you a factory or a trading company?
We are a professional manufacturer. We design and produce all our products in our own factory, which means direct pricing and strict quality control.
2. What is your MOQ (Minimum Order Quantity)?
Our MOQ is 10-20 units per model for standard orders. For OEM/ODM projects, please contact us to discuss specific requirements.
3. Do you support OEM/ODM?
Yes, we do. We can produce products with your brand name, packaging and customized specifications. Share your requirements and we will provide a solution.
4. What certifications do your products have?
Our products are GB/T 36276 certified. CE (LVD+EMC), UN38.3 and IEC 62619 certifications are in process for EU export. UL certification is planned for the North American market.
5. What is your delivery time?
Standard products: 15-30 days after deposit. OEM products: 30-45 days depending on customization.
6. What payment methods do you accept?
We accept T/T (bank wire transfer) as the primary payment method. Other options can be discussed for long-term partnerships.
7. What is your warranty policy?
We offer 2-5 years warranty depending on the product line, with technical support for the lifetime of the product.
8. Can you help with shipping?
Yes. We work with experienced freight forwarders and can arrange sea freight (FCL/LCL), air freight or express delivery worldwide.
9. How do I become a distributor?
Contact us with information about your company and market. We offer exclusive distributor pricing, marketing support and after-sales training.
10. Do you provide installation support?
Yes, we provide installation manuals, video guides and remote technical support. Our team is available for online troubleshooting.
