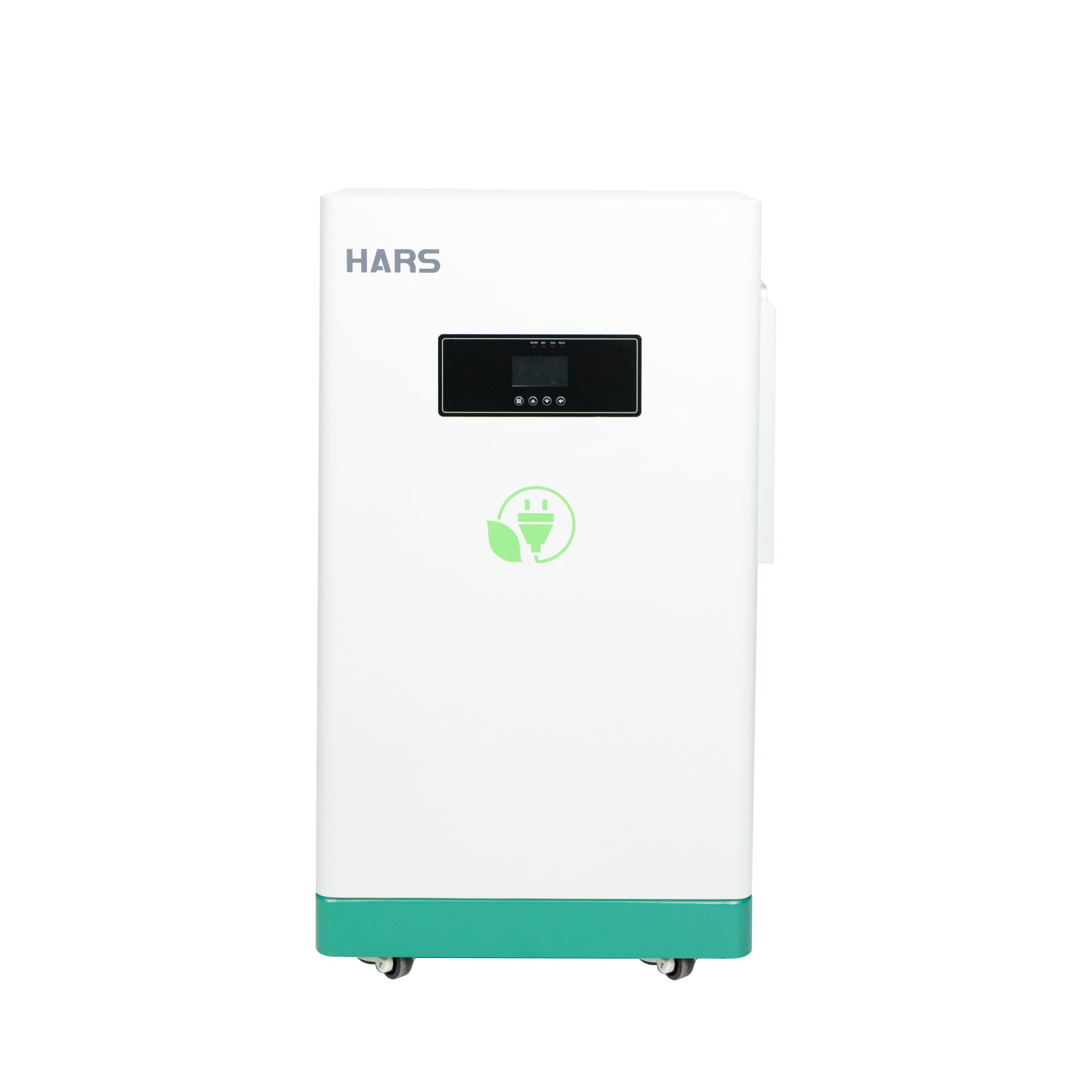

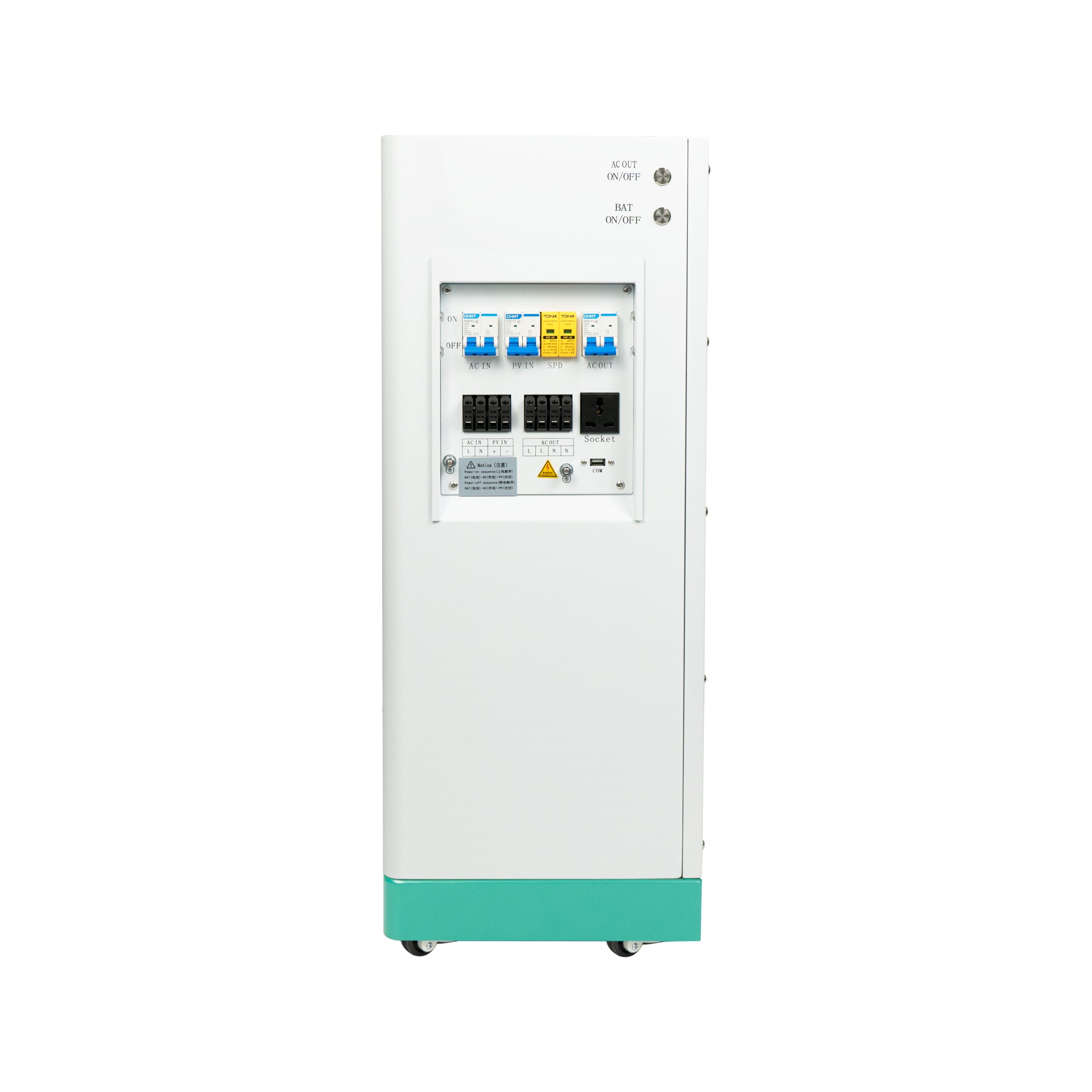

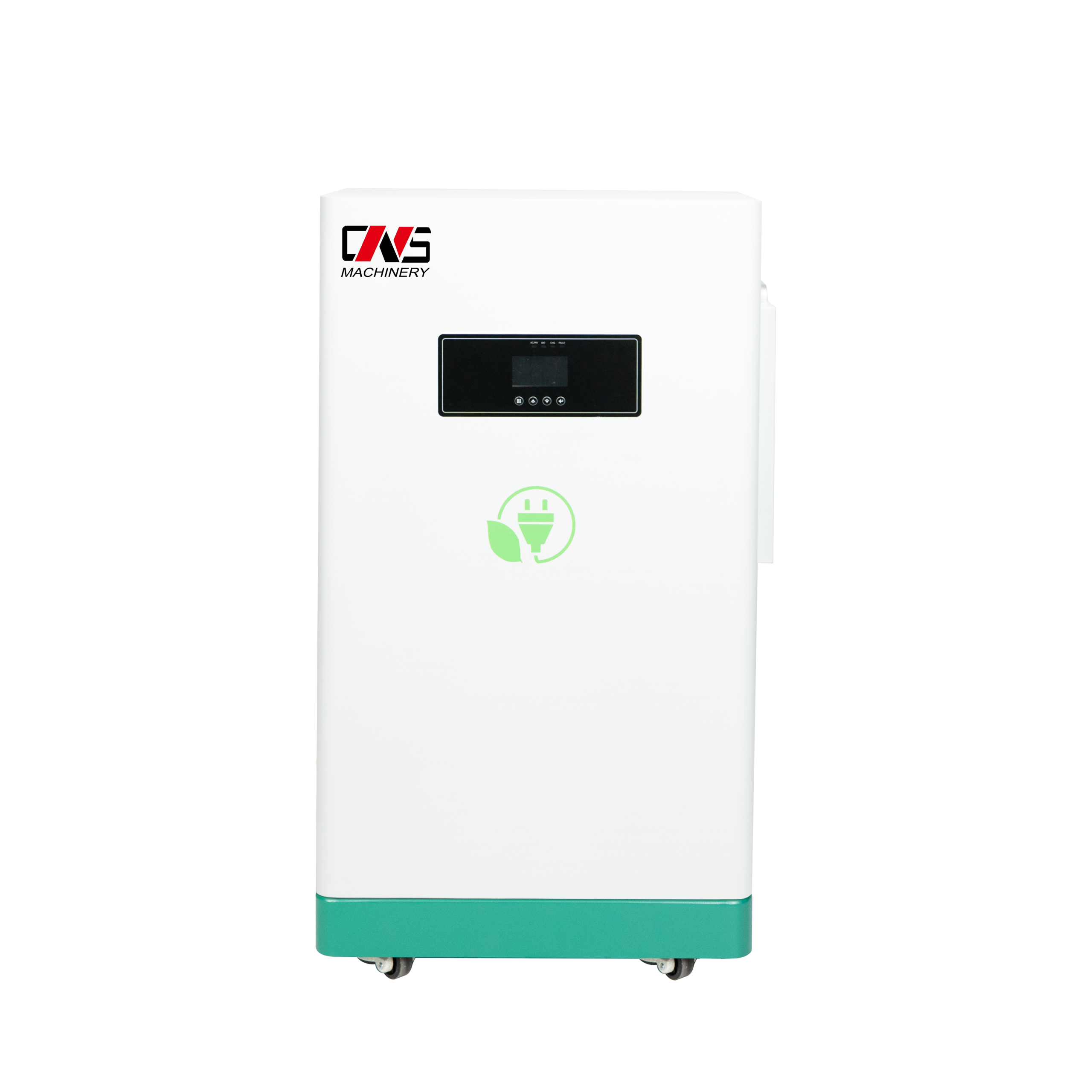

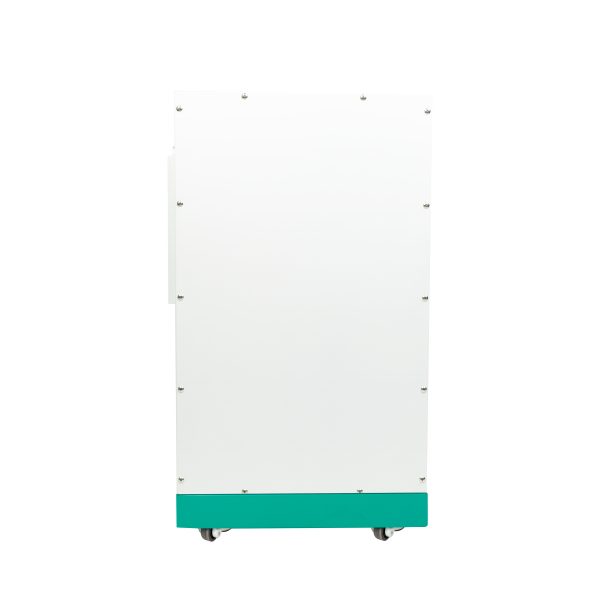

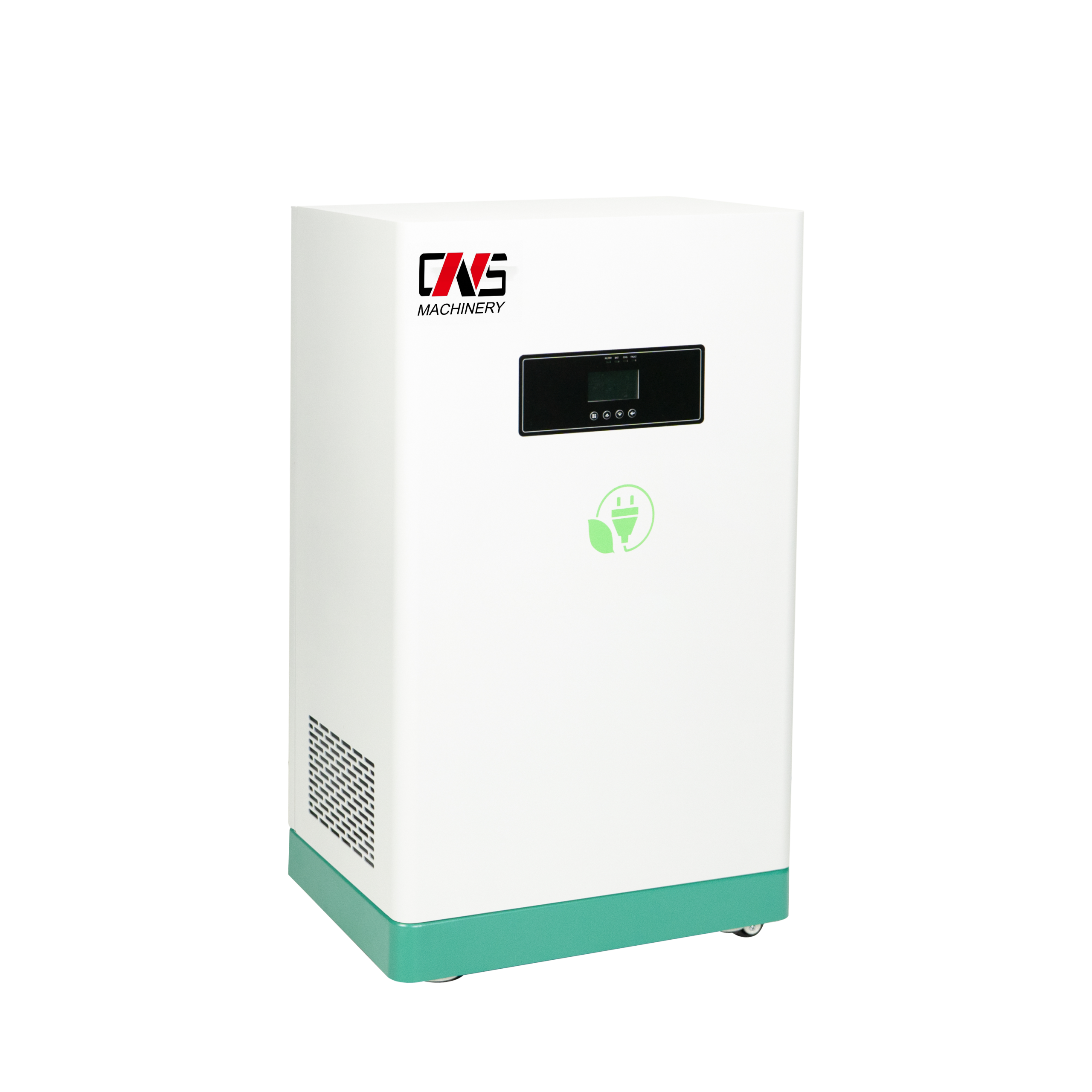

H3-W8-6500
Product Features：
- Adopts a waterproof housing design to effectively prevent rainwater intrusion.
- Pure sine wave output.
- Selectable mains input voltage range according to load requirements (home appliances / PCs).
- LCD configurable priority input mode: solar, battery or grid power.
- Protection against overload, over‑temperature and short‑circuit.
- Wi‑Fi monitoring function available.
- Battery charging current adjustable via LCD based on load demands.
Core advantages：

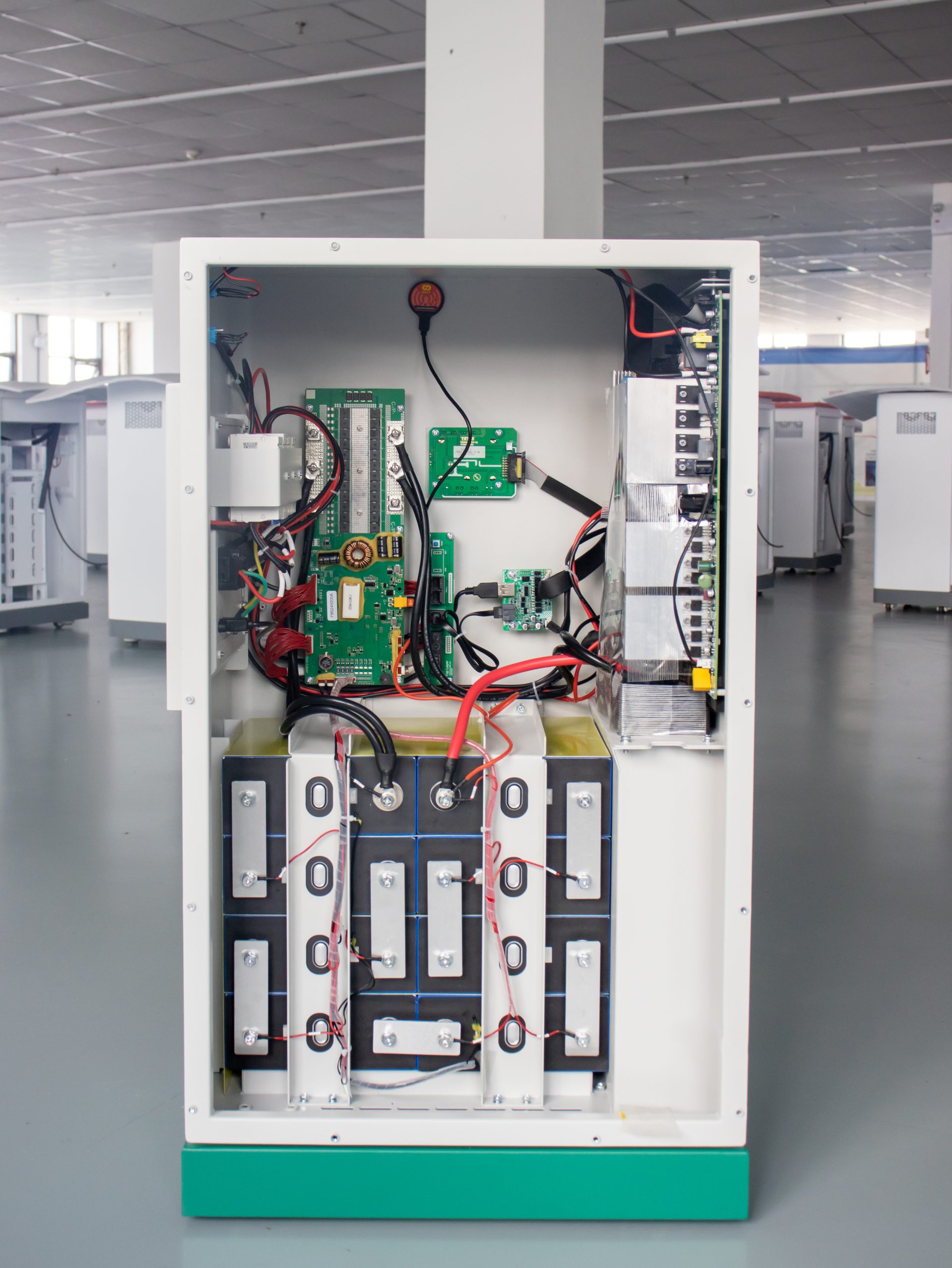

1.Integrated design of photovoltaic inverter and energy‑storage lithium battery, less wiring required for users and easy maintenance.
✅Our product features an all‑in‑one compact design with neat layout.

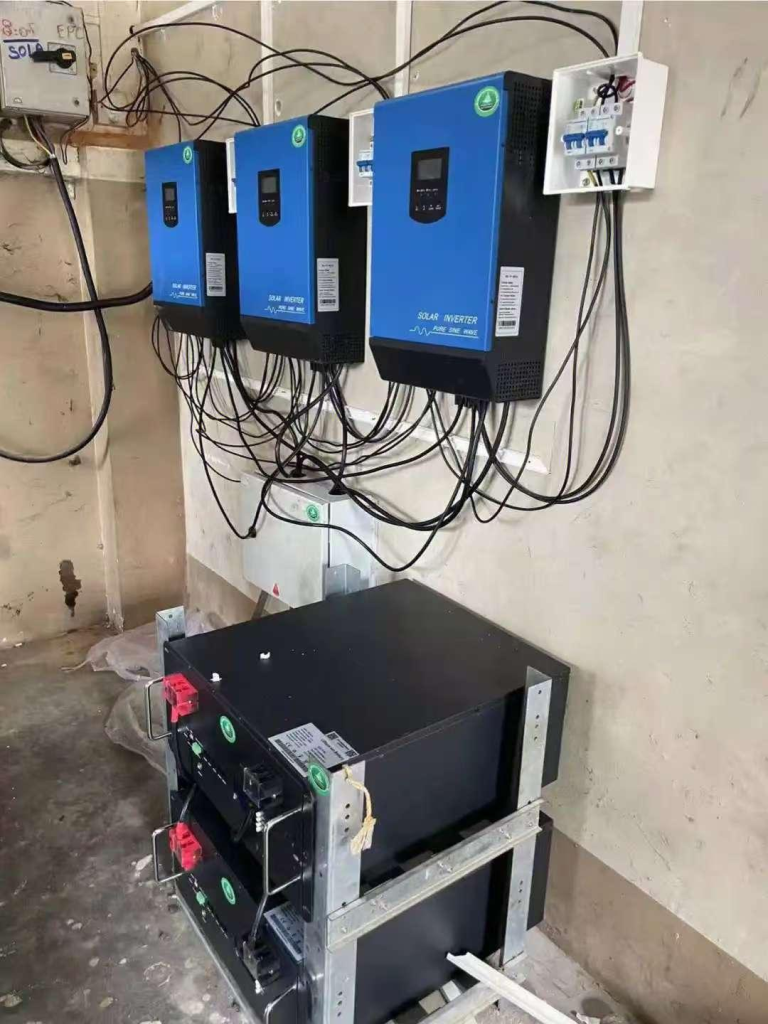

❌The traditional separate combination of lithium battery and inverter leads to messy wiring during installation.

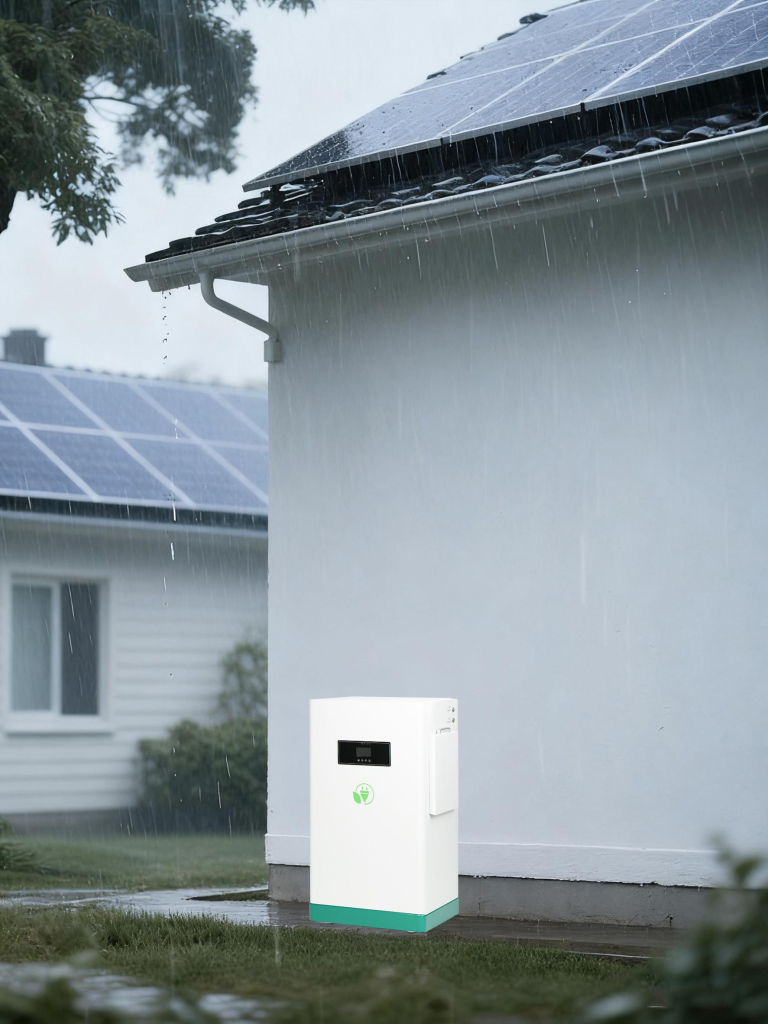

2.With an IP54 protection rating, the unit can be installed outdoors and effectively resist rainwater intrusion. It eliminates fire hazards caused by indoor installation and avoids safety risks resulting from battery thermal runaway.

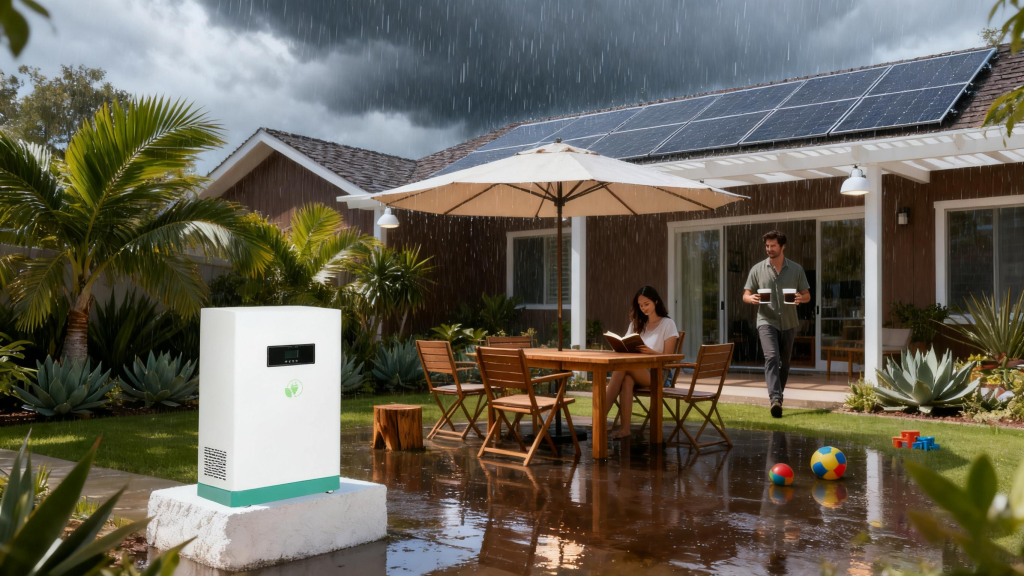

✅ Waterproof housing for outdoor application
❌ No waterproof rating, only for indoor use with hidden safety risks
Product parameter:
| Model | H3‑W8‑6500 (8kWh) |
|---|---|
| Lithium‑ion Battery | |
| Single Module | 3.2V 314Ah |
| Module Quantity | 8pcs |
| Rated Voltage | 25.6V |
| Operating Voltage | 22V‑29.2V |
| Standard Charge‑Discharge Rate | 0.5CP |
| Humidity | 20%‑60% |
| Communication Interface | RS485/CAN |
| Installation Type | Outdoor All‑in‑One |
| Battery Input | |
| Battery Type | LiFePO4 |
| Rated Battery Voltage | 25.6V |
| Battery Voltage Range | 22V‑29.2V |
| PV Input | |
| Max. PV Open‑circuit Voltage | 500Voc |
| Max. PV Input Current | 27A |
| Max. PV Input Power | 9000W (4KW Charging +5KW Inverting) |
| Max. PV Charging Current | 160A |
| MPPT Voltage Range | 60‑450Vdc |
| Peak Operating Efficiency | 98% |
| AC Input (Generator / Grid) | |
| Max. Mains Bypass Current | 40A |
| Max. Mains Charging Current | 160A |
| Input Voltage Range | 90‑280Vac |
| Frequency | 50Hz/60Hz |
| AC Output | |
| Output Voltage Waveform | Pure Sine Wave |
| Rated Voltage | 230Vac(±5%) |
| Rated Output Power | 5000W |
| Surge Power | 10000W |
| Transfer Time | 20ms |
| Output Frequency Range | 50Hz/60Hz |
| Dimension & Weight | |
| Unit Dimension (LWH) | 500330835mm |
| Package Dimension (LWH) | 900560495mm |
| Net Weight (N.W.) kg | 82±2 kg |
| Gross Weight (G.W.) kg | 98±2 kg |

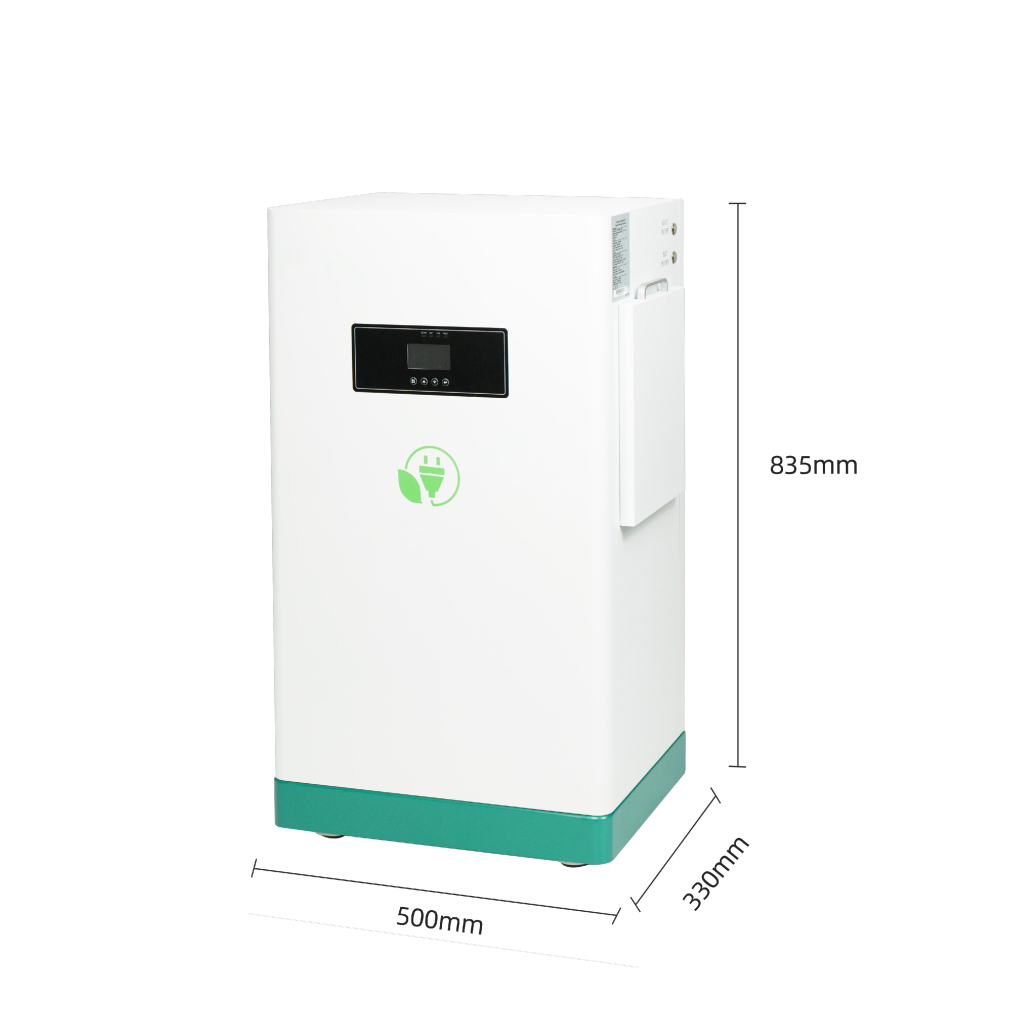

Product size:
Product application scenario:
- Outdoor residential use

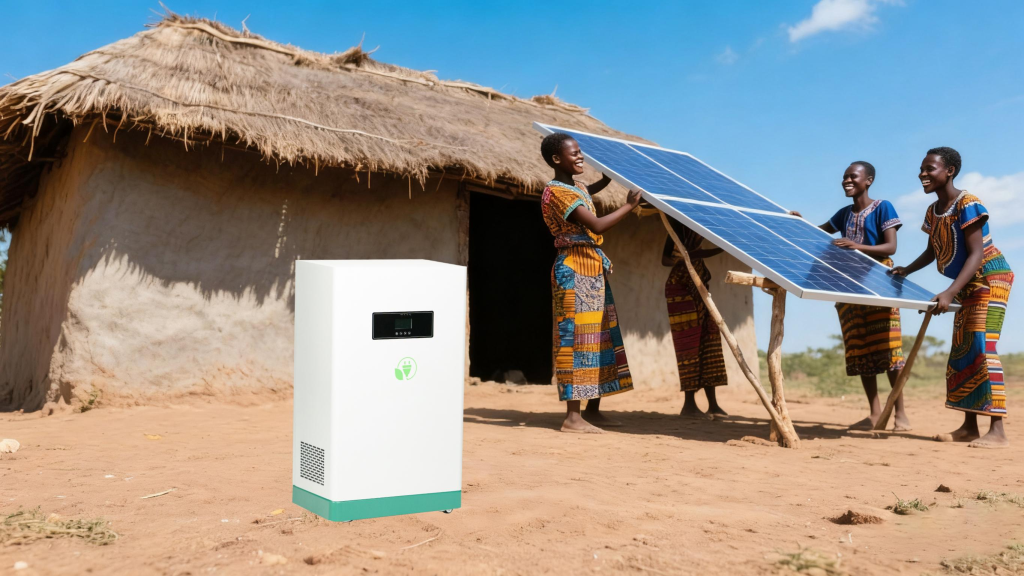

- Areas with insufficient or unstable power supply

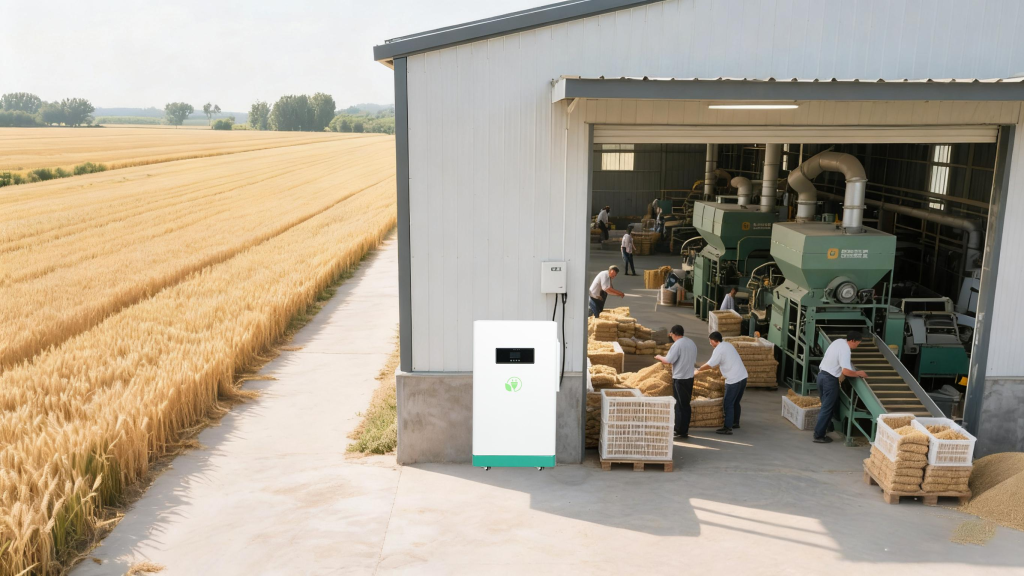

- Farm power supply

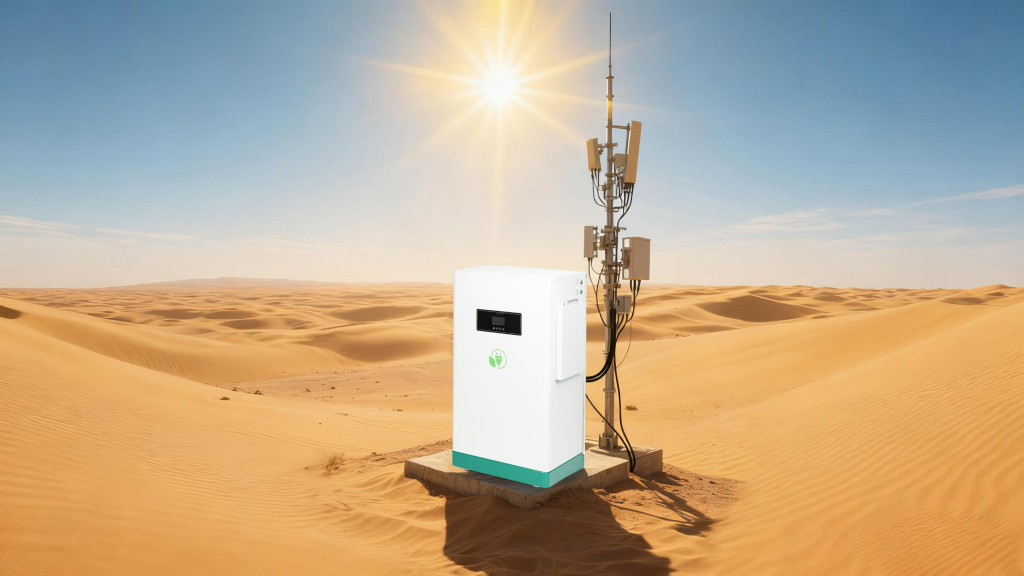

- Communication base stations
